Asteroids Multigame - Asteroids, Asteroids Deluxe, Lunar Lander

The Asteroids Multigame and Asteroids Deluxe Multigame are add-on enhancement kits that extend your Atari Asteroids or Asteroids Deluxe game board to play all 3 games: Asteroids, Asteroids Deluxe, and Lunar Lander. As with all Braze Technologies multigames, these kits are loaded with features such as high score save, on-screen settings configuration, and enhanced diagnostic selftests. Switch between games at anytime by simply pressing both start buttons at the same time. Lunar Lander Huh? how does that work? Check out the FAQ for commonly asked questions and instructions on how to use the multigame kit. The Multigame kit comes in two models depending on the boardset type. For detailed information select the model of the kit by clicking on the image below.

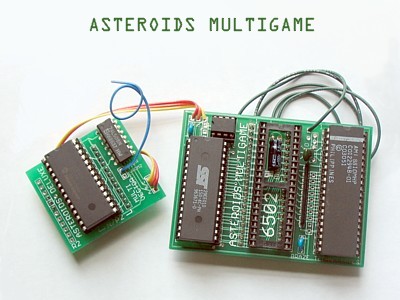

Asteroids Multigame Kit

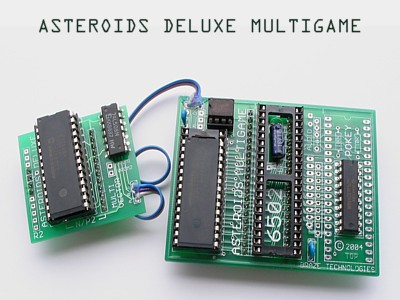

Asteroids Deluxe Multigame Kit

Features

	Switch between games at any time by pressing and holding both start buttons at the same time. Game will instantly switch to the next game in the sequence.
	Asteroids extended scoring. This kit contains special code modifications derived from the Asteroids High Score Save Kit allowing scores up to 9,999,990 instead of the original 99,990. No more losing your high score when you roll over the 100K mark. See sample screen shots
	Transfer your existing Asteroids high scores. If you currently own the Braze Technologies Asteroids High Score Save Kit. You can transfer the high scores from that kit to the multigame kit using a simple procedure of moving a single chip from one kit to the other. See importing Asteroids high scores.
	The on-screen interactive setup menu provides access to configure game play settings separately for each of the games including resetting of the high score tables. No need to fiddle with DIP switches anymore.
	Special high quality gold plated machined header pins on the daughter cards. Provides a perfect mate with your Asteroids sockets. High reliability and strength for a long lasting connection. Daughter cards snap firmly into place. See picture.
	Top 10 high scores and initials for Asteroids and Asteroids Deluxe are remembered permanently, long after the game has been powered off. No batteries to replace ever. Note: Original Asteroids did not save any scores and original Asteroids Deluxe only saved the top 3.
	Easy to clear out the high scores when desired. Simply put the game into testmode, follow the instructions to get into setup mode. From there, select the high score reset option for the desired game(s) and exit out.

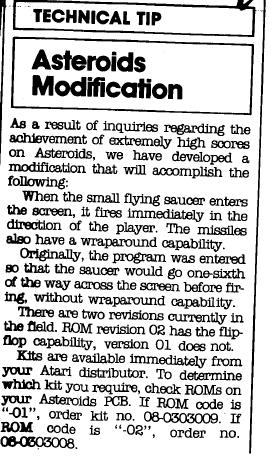

	Asteroids software includes a new feature allowing the selection of EASY gameplay (original) versus HARD gameplay. This implementation is a result of merging the original Atari Asteroids software with a previously rare Atari Asteroids release. This later Asteroids release changed the game software in order to make the gameplay more difficult. The Asteroids Multigame allows selection of either difficulty level. See Asteroids harder gameplay details (jpg).

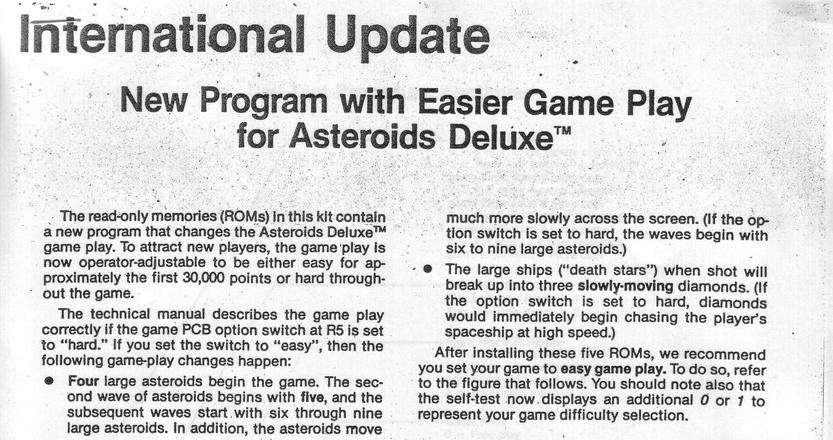

	Atari released a 2nd version of Asteroids Deluxe which had easier gameplay (probably due to complaints). In that revision they added a DIP switch setting allowing selection of the original (hard) gameplay or the new (easy) version. This kit is based off the 2nd release and allows selection of EASY or HARD gameplay via the setup menu. See Asteroids Deluxe Revision 2 release (jpg).
	Fixes the "missing last letter on the 10th score" bug. There is a bug in the Atari REV2 code wherby every time you start a game, the last letter (initial) in the 10th score is erased. The modified software on this kit fixes that errata.
