Donkey Kong High Score Save Kit -- Plus Extras!

Braze Technologies

Innovative solutions for the "classic" arcade collector

Donkey Kong High Score Save Kit -- Plus Extras!

A simple to install high score save kit that permanently remembers the top 5 scores and initials for Donkey Kong. Plus many extras features such as deluxe Free play, attract mode sound, powerup Selftest, and on-screen Settings.

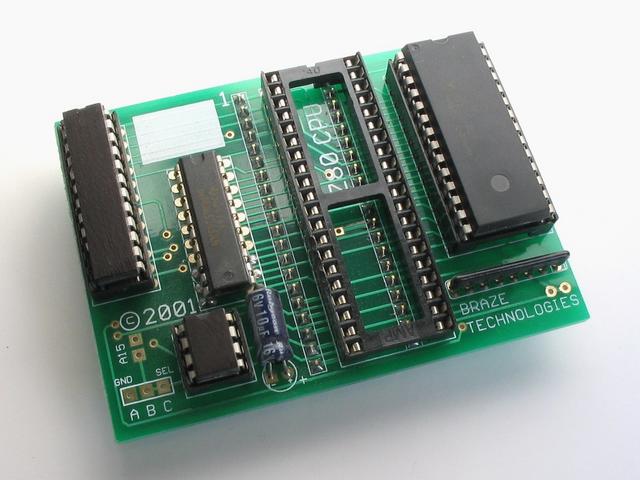

Installs in minutes! No special wiring or soldering is typically required. Simply remove the Z80 chip from your DK CPU board, insert this Z80 CPU chip into the daughter card (pictured right) and then plug the daughter card into the vacated Z80 socket on the CPU board. Thats it! Detailed installation instructions provided online here.
Note: Since releasing this product, it has been noticed that some 4-boardset style DK games unfortunately have the Z80 chip soldered to the CPU board. If you have a 4-boardset style DK game, please examine your boardset prior to ordering and read over in detail the install guide, as installation will not be as easy in this case.
New! A special version of this kit is available specifically for Double Donkey Kong owners. Click here for details.
Donkey Kong Junior kit

High Score Save Kit
(click for larger image)

Pricing and Availability

Ready to install kits are available today for $45. USA Shipping is $4 Kit is packaged in an anti-static bag and packed with bubble wrap in a cardboard box to insure safe delivery. Default shipping is via USPS Priority Mail (USA). No extra shipping charge for additional kits. Payment and Shipping terms.

Features

Kit installs in just minutes. No board modifications or special wiring is required. See detailed Installation Guide.

Top 5 high scores and initials are remembered permanently, long after the game has been powered off. No batteries to replace ever.

True "free play". No coins required. No need to open your coin door. Full (standard) attract mode while in free play mode. See free play screen shots.

Selectable attract mode sound.

Extensive powerup diagnostics automatically tests your board each time the game powers up. See bootup documentation.

On screen settings menu allows easy changing of game settings and erasing of high scores without having to crawl into your machine and remember complicated DIP switch settings. See settings description.

Misc

Please see my payment and shipping terms

The original "universal" also called "combo" version of this kit which is jumper selectable to do either DK and DKjr is available via special request only.

If you have any other questions please do not hesitate to email me
